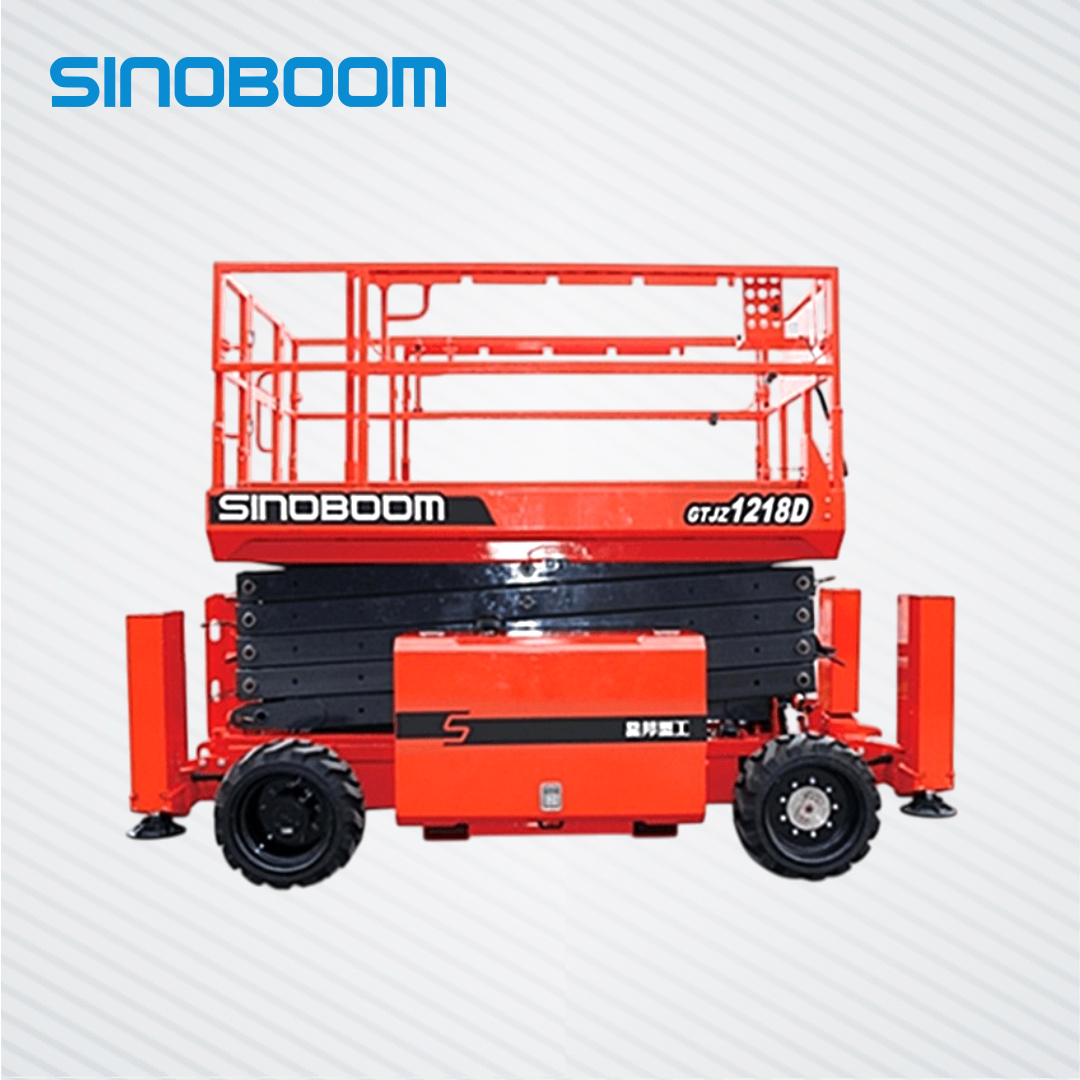

D-Scissor Lift GTJZ 1218
ENGINE POWERED ROUGH TERRAIN SCISSOR LIFTS
Description
Platform Allowable Occupants (Indoor) 3 persons
Platform Allowable Occupants (Outdoor) 2 persons
Platform Capacity 365 kg (805 lbs)
Drive Speed-Stowed 0～5.6 km/h (0～3.5 mph)
Drive Speed-Raised 0～0.48km/h (0～0.3 mph)
Elevation Time (Unloaded) 55s～65s
Descent Time (Unloaded) 50s～60s
Gradeability 35%
Turning Radius (Inside/Outside) 2.11m/4.6m (6’11.1″/15’1.1″)
Tilt Rating (Front to Back) 3°
Tilt Rating (Side to Side, Outrigger Tele-In/Tele-Out) 2°/0.8°
Max Outrigger Leveling (Front to Back) 5.3°(front)/4.2°(back)
Max Outrigger Leveling (Side to Side) 11.7°
Tyres-solid 26×12-16.5/solid
