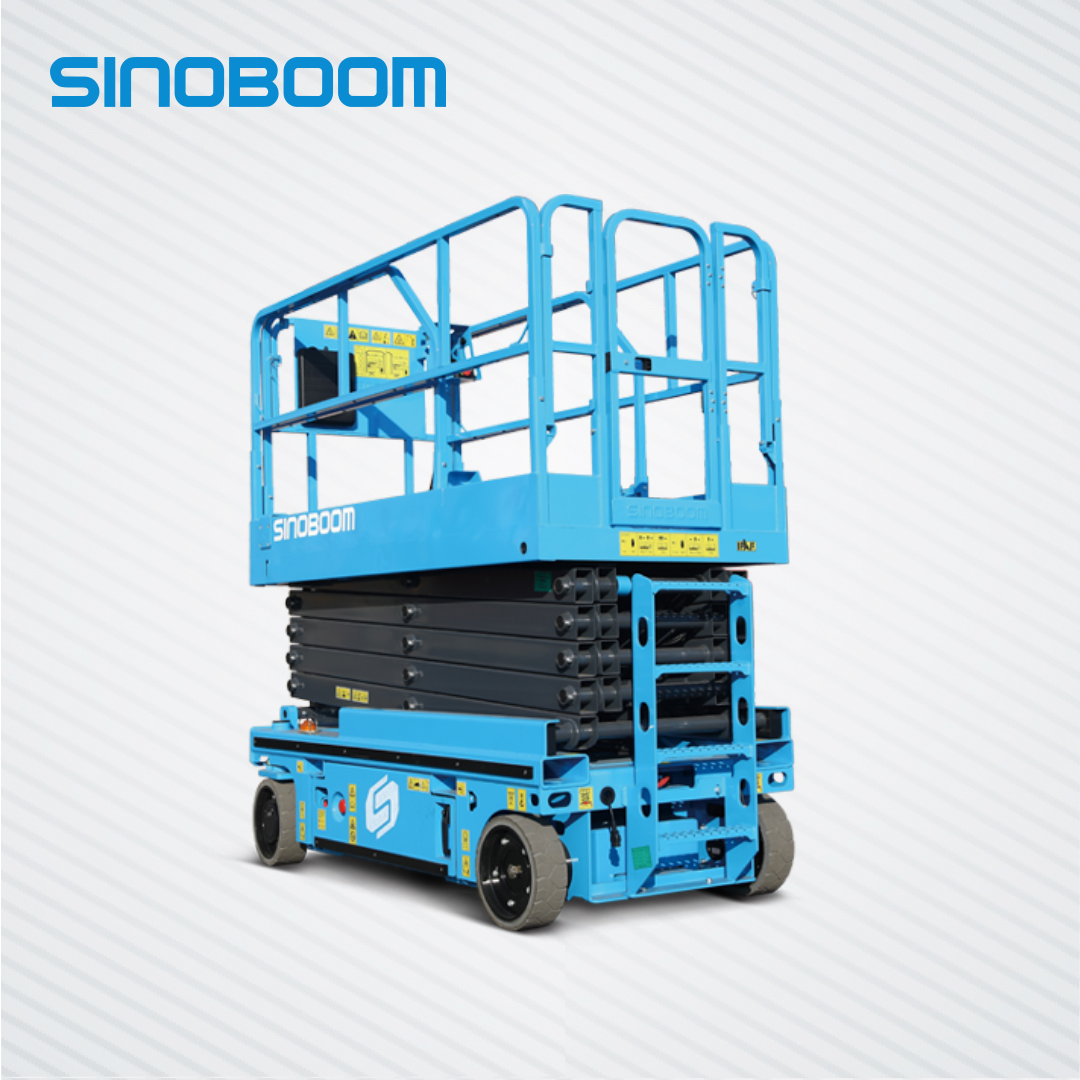

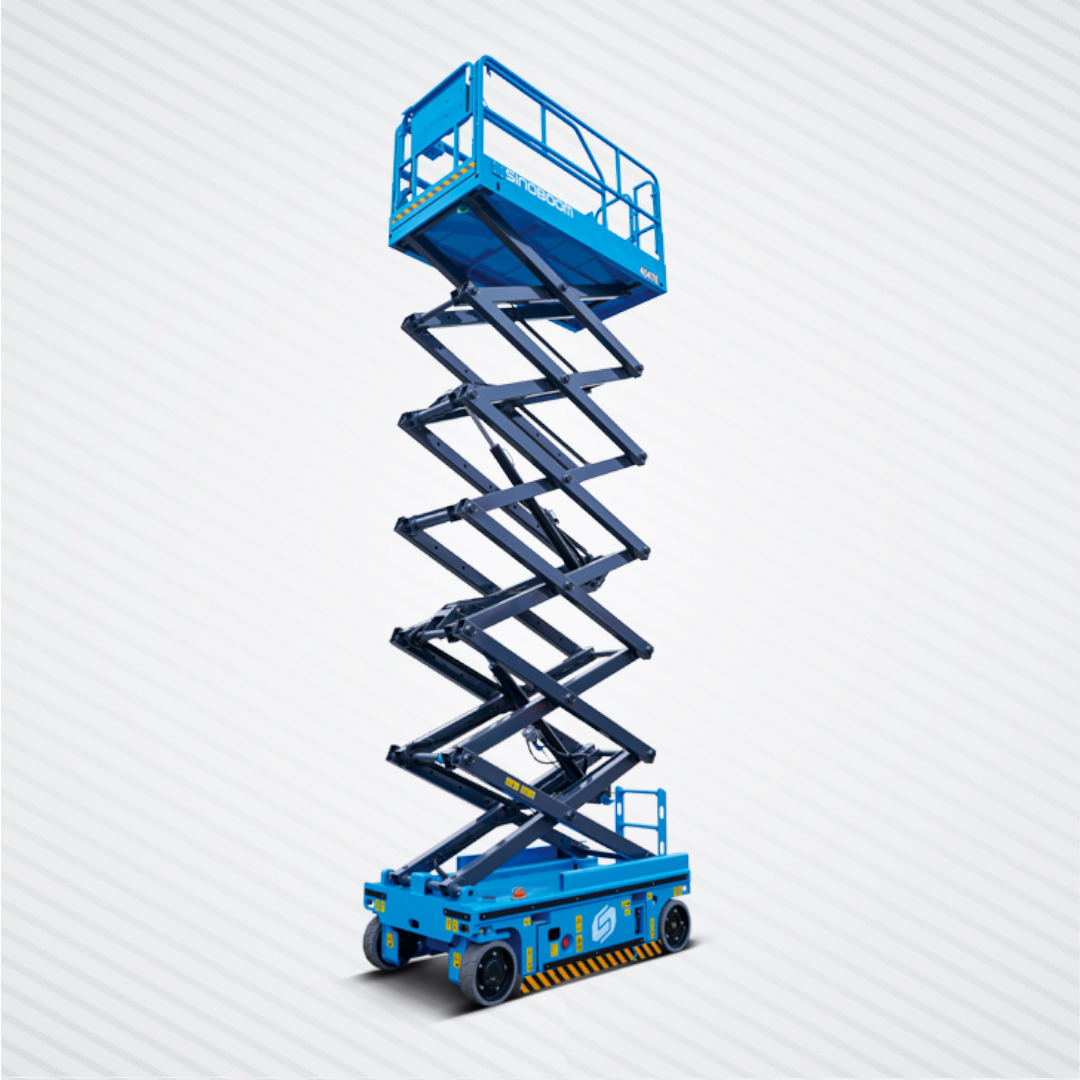

E-Scissor Lift GTJZ 1212
ELECTRIC SCISSOR LIFTS – ELECTRIC DRIVE
Description
Platform Allowable Occupants (Indoor/Outdoor)
2 Persons / 1 Person (Indoor/Outdoor)
Platform capacity 320kg (705.6lbs)
Lift Extension Capacity 120 kg (265 lbs)
Drive Speed-Stowed 0 ～ 4 km/h (0 ～ 2.5 mph)
Drive Speed-Raised 0 ～ 0.8 km/h (0 ～ 0.5 mph)
Elevation Time(Unloaded) 63s~68s
Descent Time(Unloaded) 44s~49s
Gradeability 25%
Turning Radius (Inside/Outside) 0 m/2.35 m (0/7’8.5″)
Tilt Rating (Front to Back/Side to Side) 3°/1.5°
Tyres-solid 380×125 mm/solid (15×5″)
