GTJZ 608S
GTJZ 608S-1

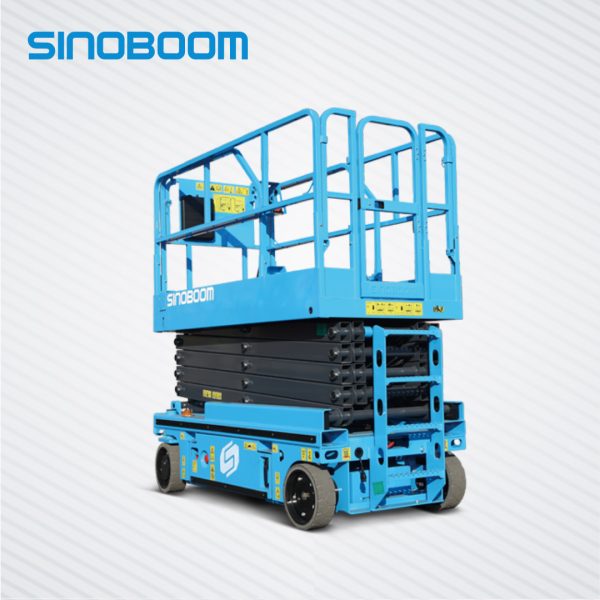

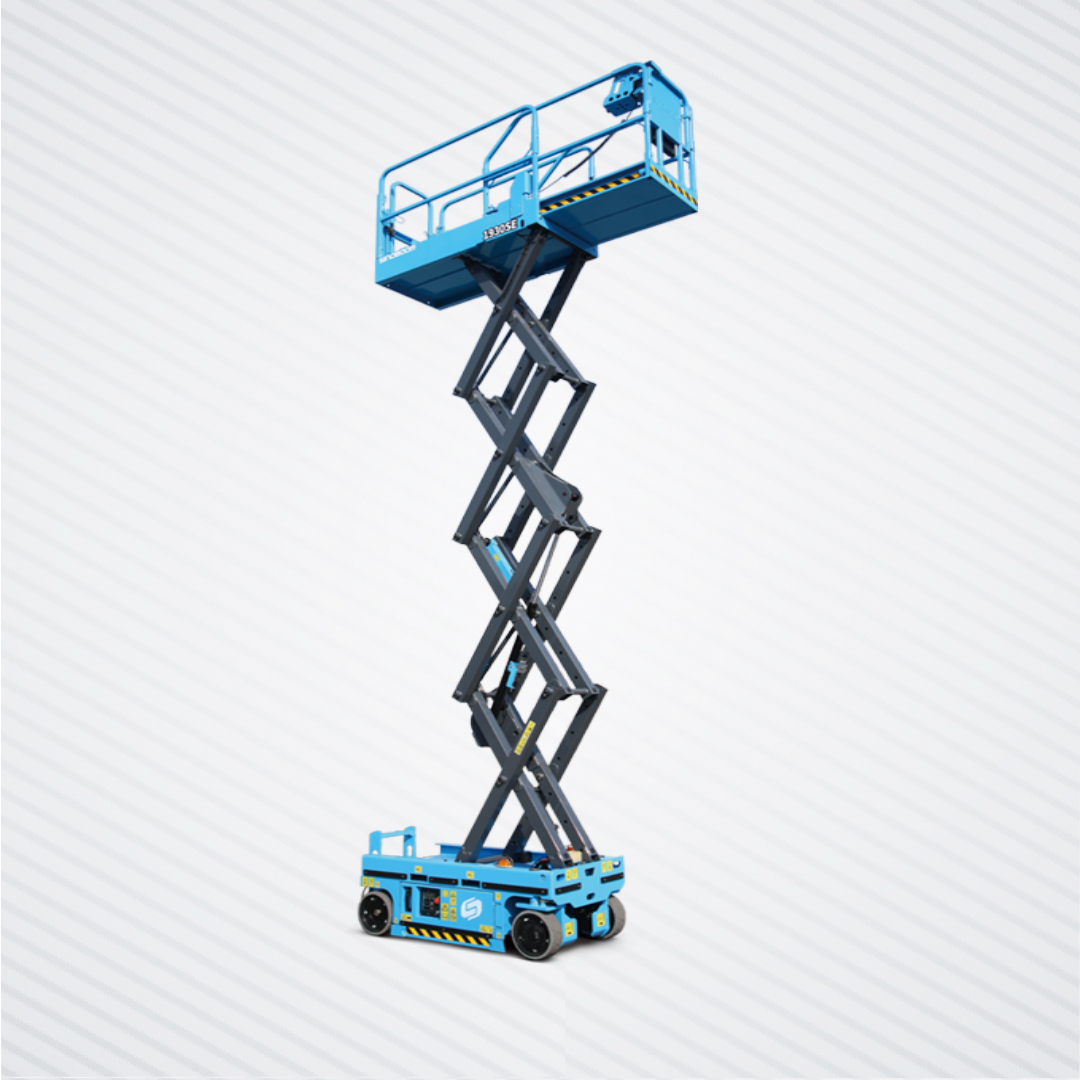

E-Scissor Lift GTJZ 608 S

Category: SKU: SCISSOR-LIFT-1-1 Brand:

2WD×2WS Maintenance-free battery Fault diagnosis system

Solid non-marking tires Proportional control  Emergency lowering system

Emergency stop system Electrophoretic painting Tilt protection system

Loading...

Description

Platform Allowable Occupants (Indoor/Outdoor) 2 Persons/1 Person

Platform capacity 230 kg (507 lbs)

Lift Extension Capacity 120 kg (265 lbs)

Drive Speed-Stowed 0～4 km/h (0～2.5 mph)

Drive Speed-Raised 0～0.5 km/h (0～0.3 mph)

Elevation Time(Unloaded) 25 s~30 s

Descent Time(Unloaded) 25 s~30 s

Gradeability 25%Turning Radius (Inside/Outside) 0 m/1.62 m (0 /5’3.78″)

Tilt Rating (Front to Back/Side to Side) 3°/1.5°Tyres-solid 323×100mm (12.7×4″)/solid non-marking tires
