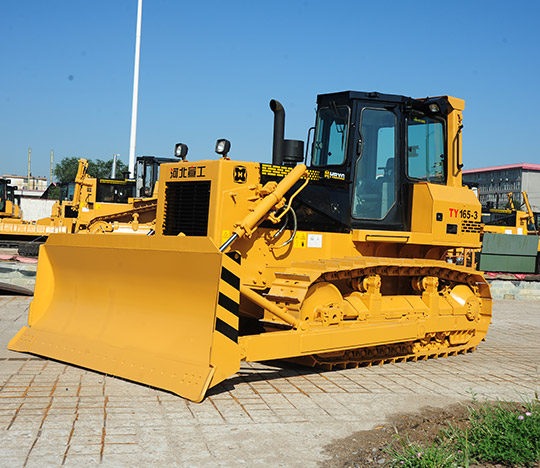

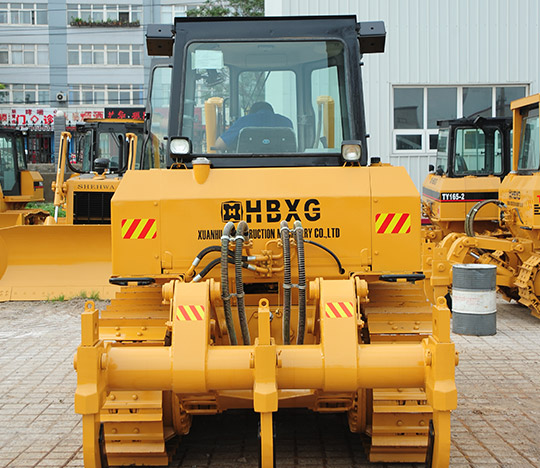

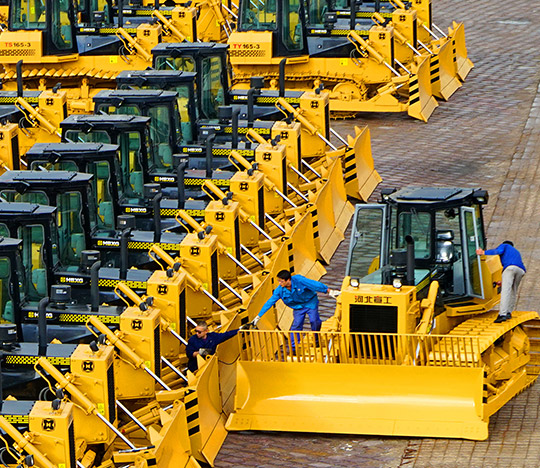

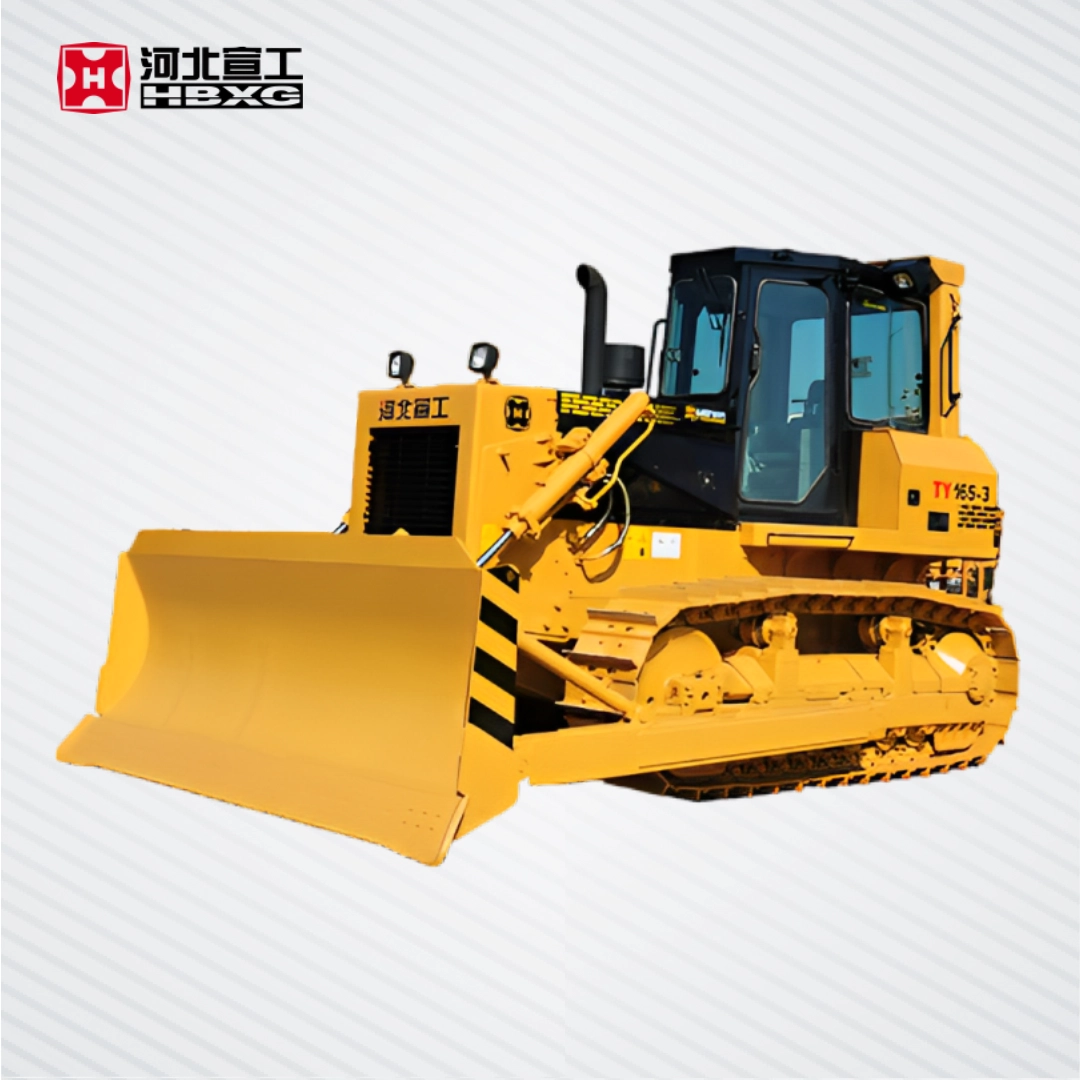

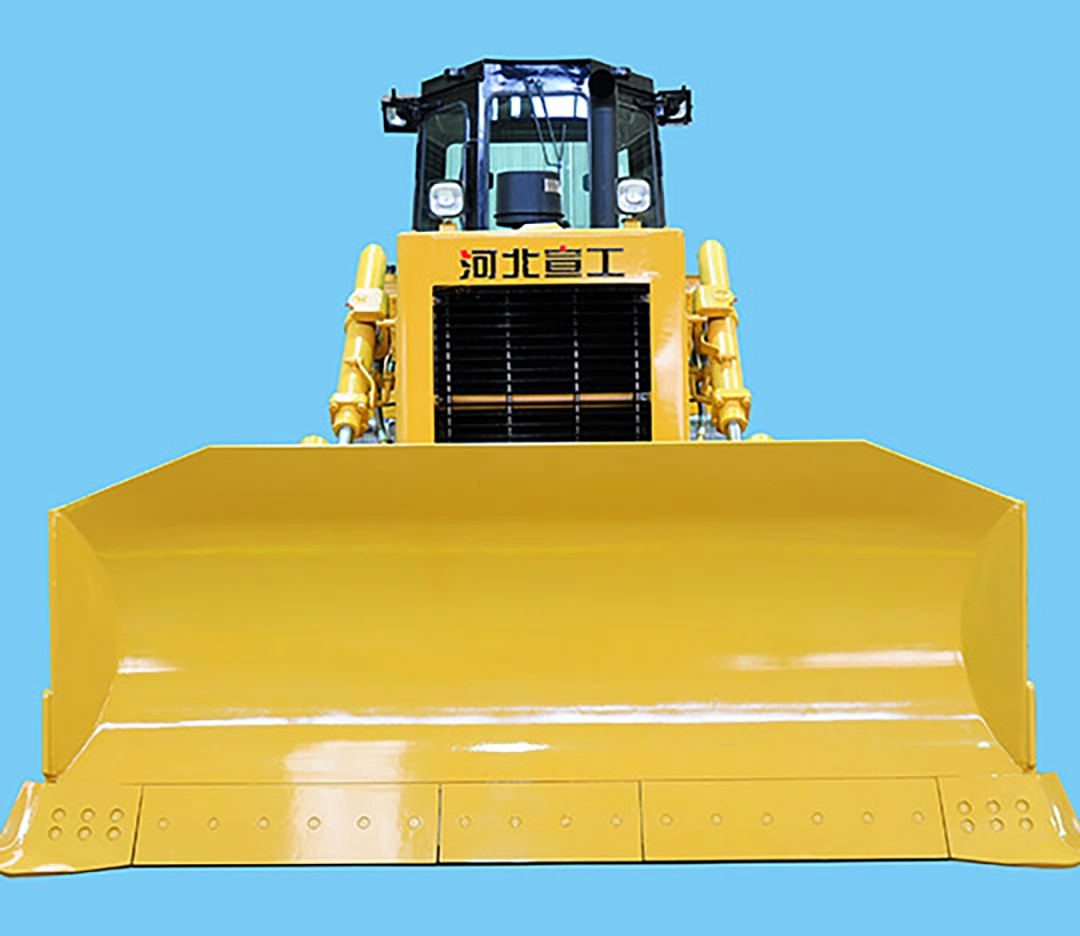

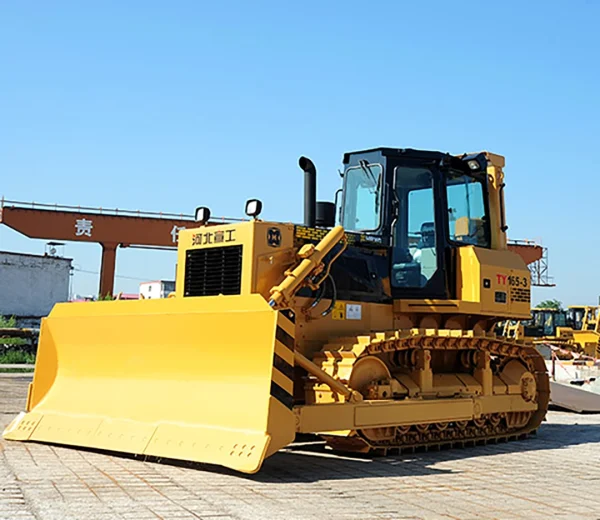

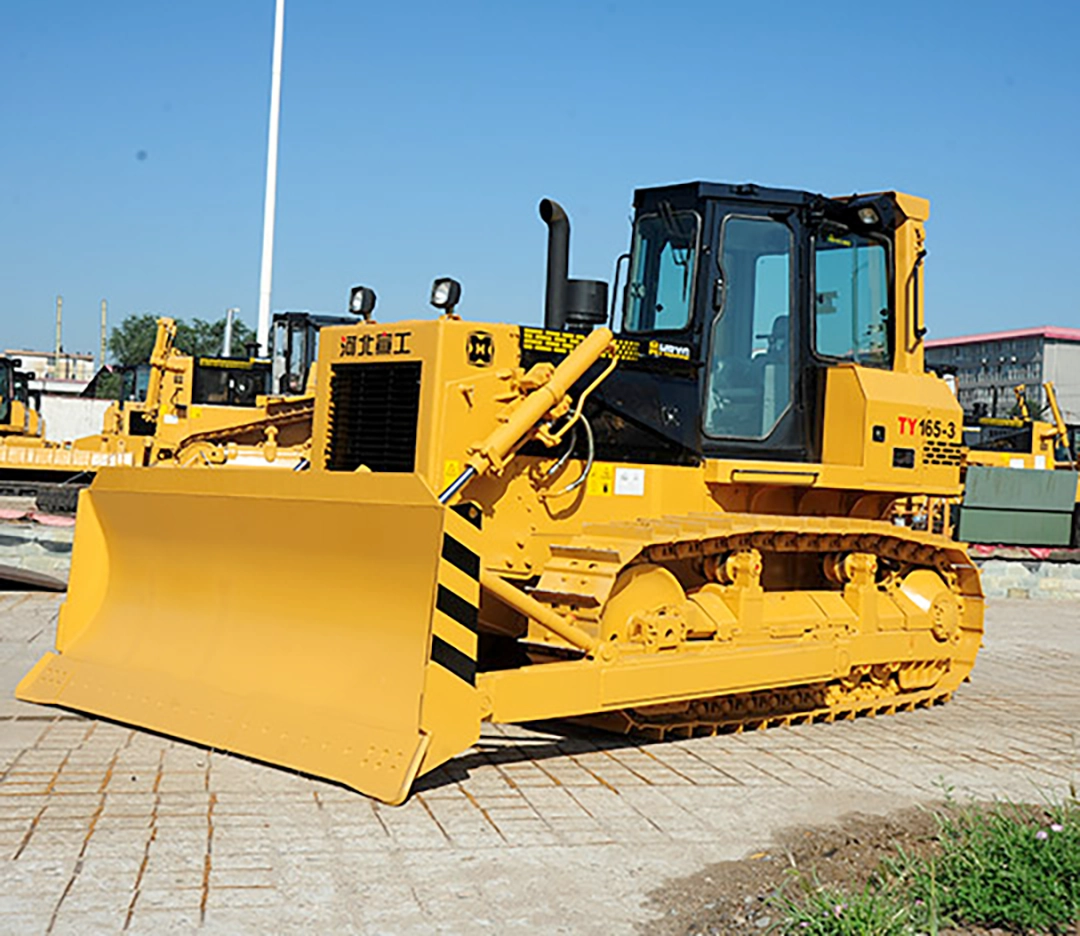

The TY165-3 Bulldozer is a powerful, 165-horsepower tracked dozer, designed for maximum efficiency and performance in challenging environments. This machine is built with a hydraulic direct drive system, semi-rigid suspension, and advanced hydraulic-assist blade controls, ensuring ease of operation, reliability, and low maintenance costs.
| Description | Details |
|---|---|
| Operation Weight | 17,550 Kg |
| Ground Pressure | 68.3 KPa |
| Track Gauge | 1880 mm |
| Dozing Capacity | 4.6 m³ |
| Blade Width | 3297 mm |
| Max Digging Depth | 420 mm |
| Engine Power | 165 HP (Weichai WD10G178E25) |
| Rated Speed | 1850 RPM |
| Max Torque | 830 N•m at 1000-1200 RPM |
| Fuel Consumption | ≤ 215 g/KW•h |
