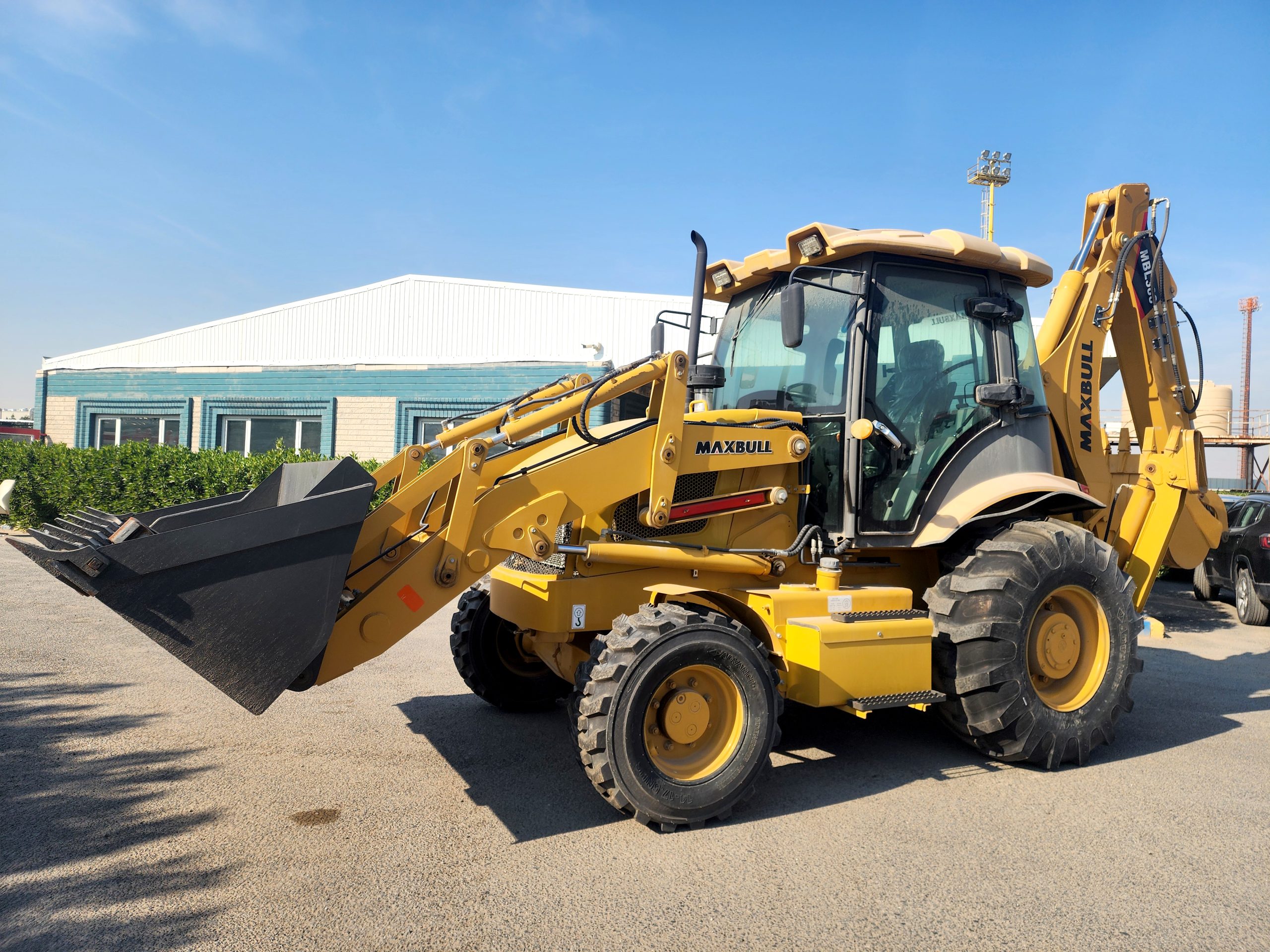

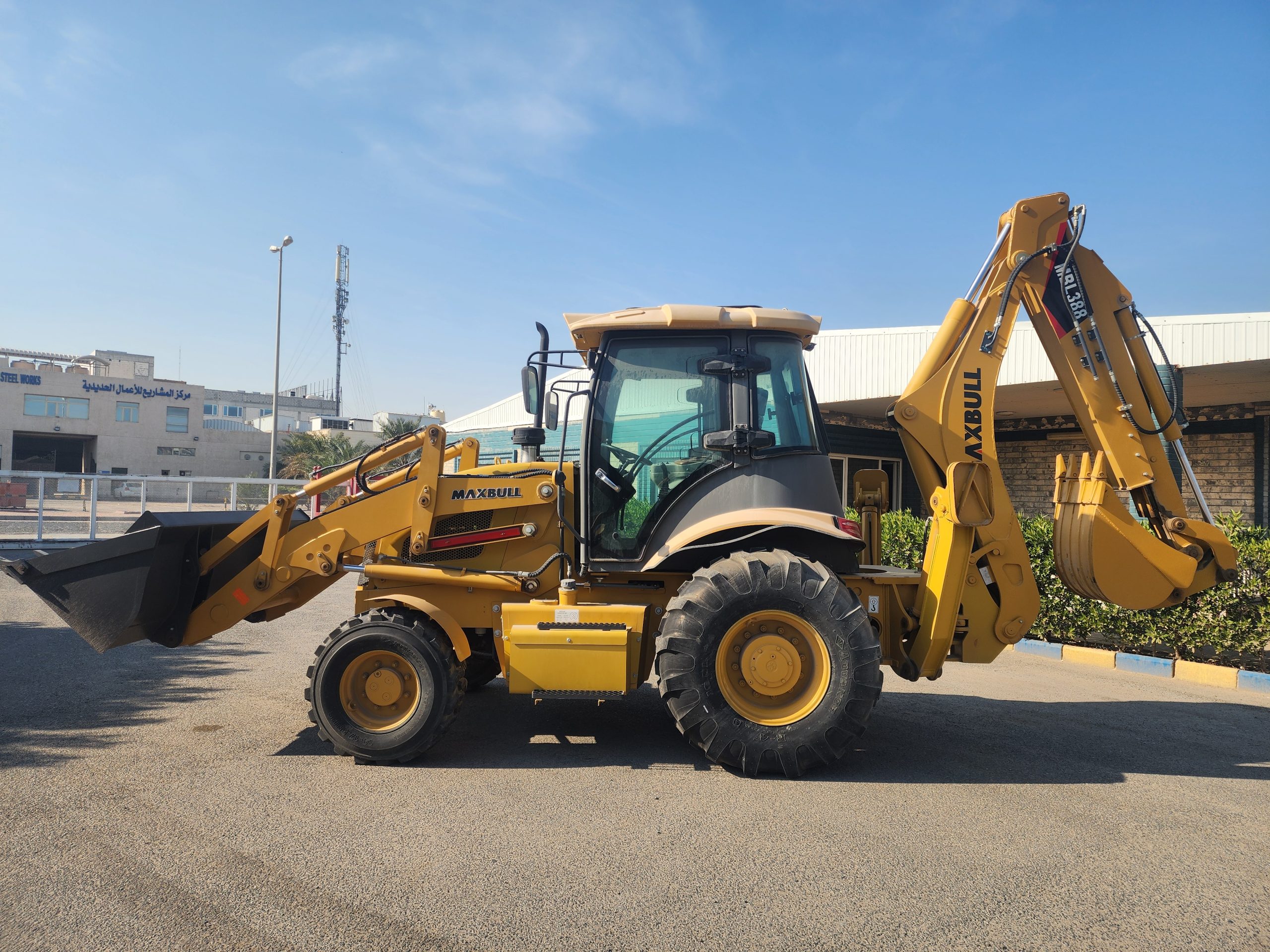

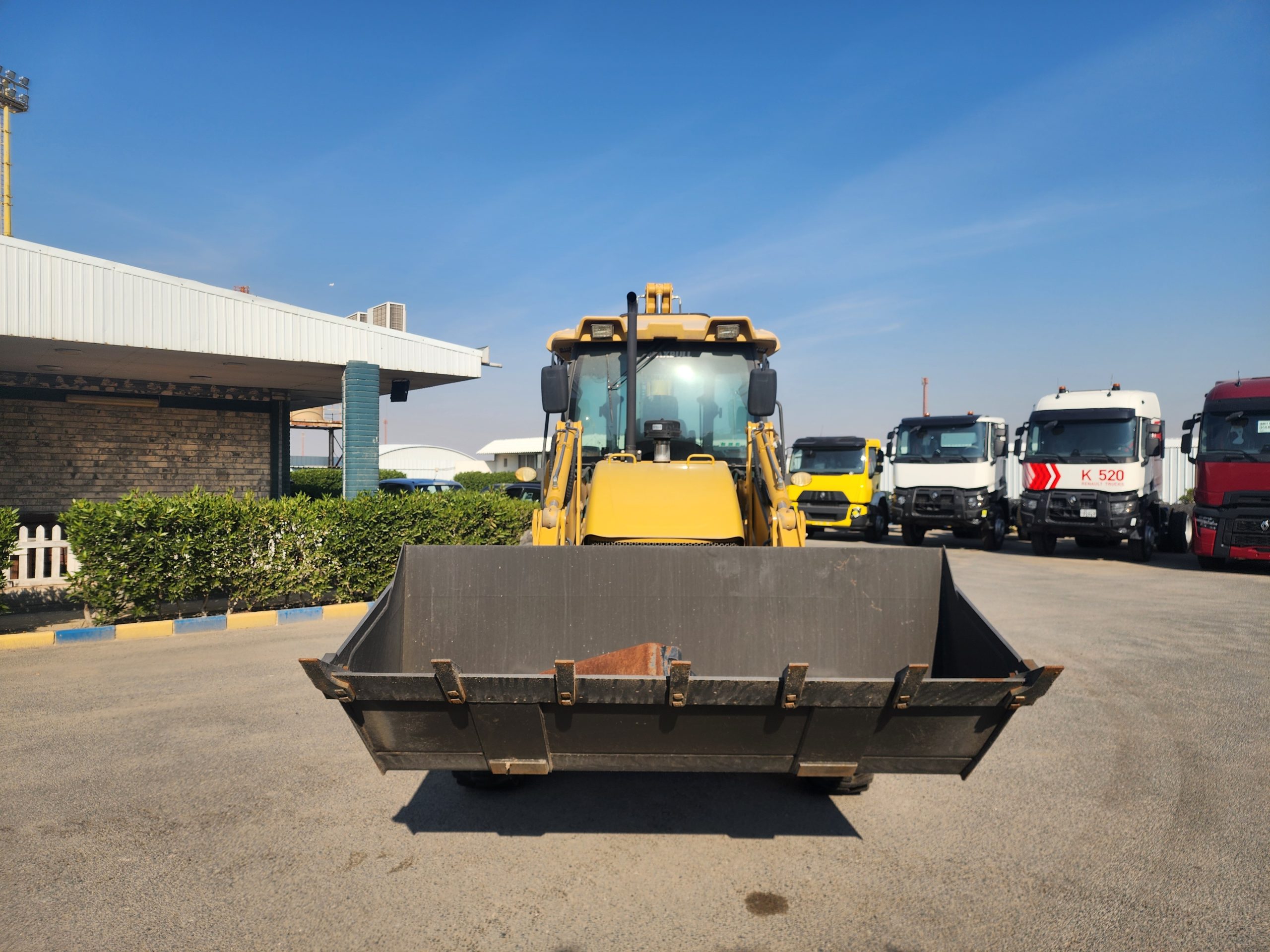

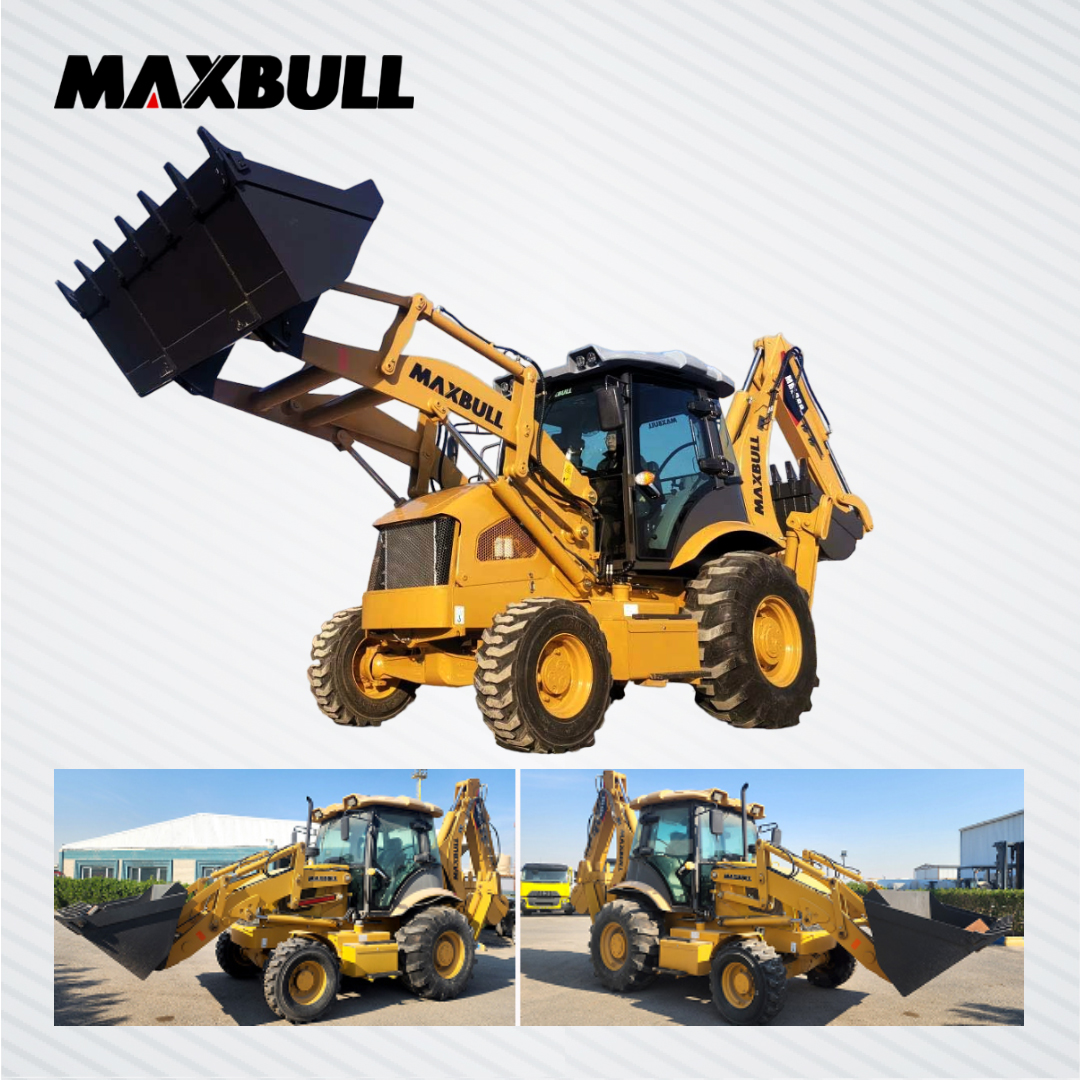

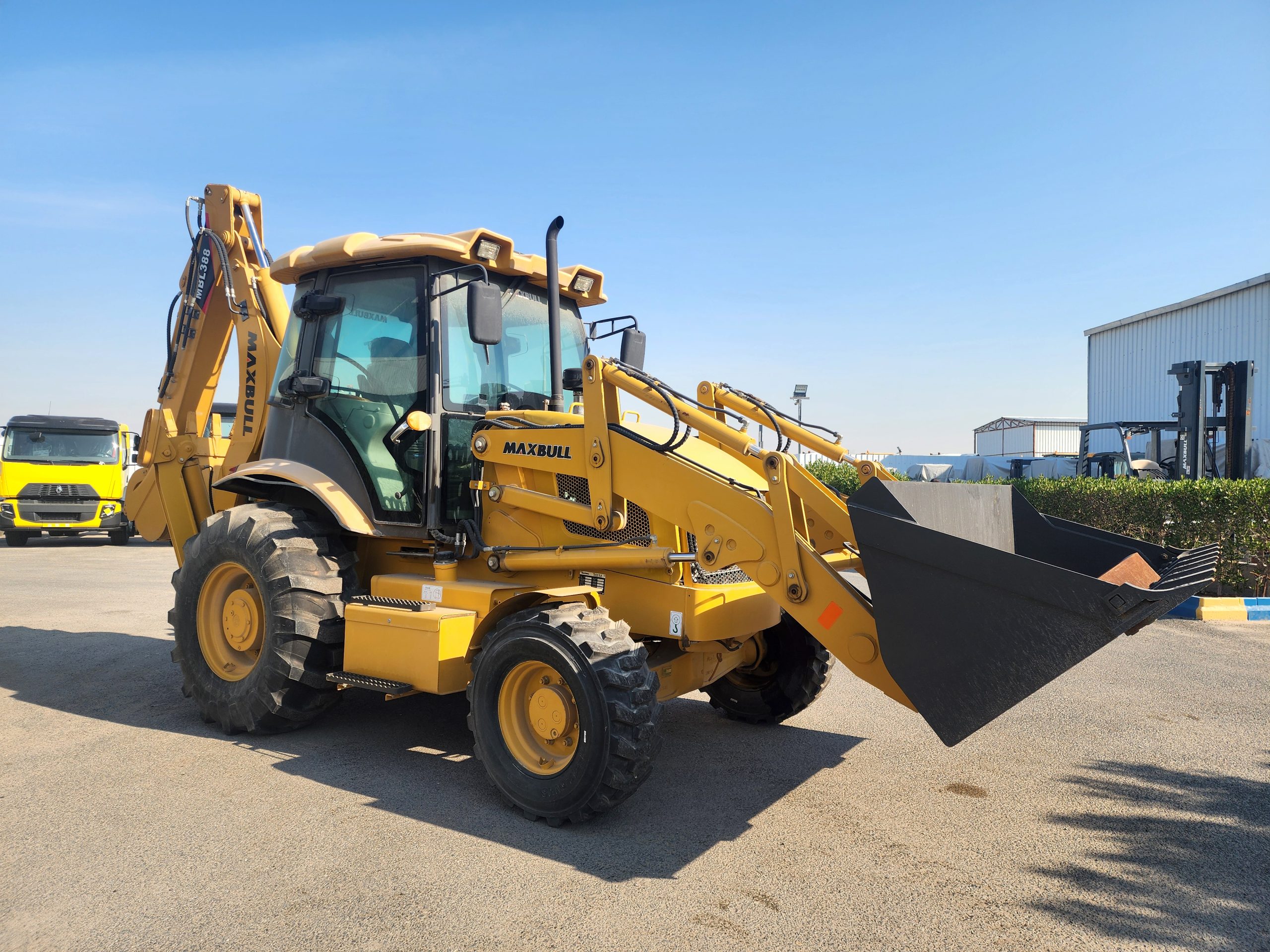

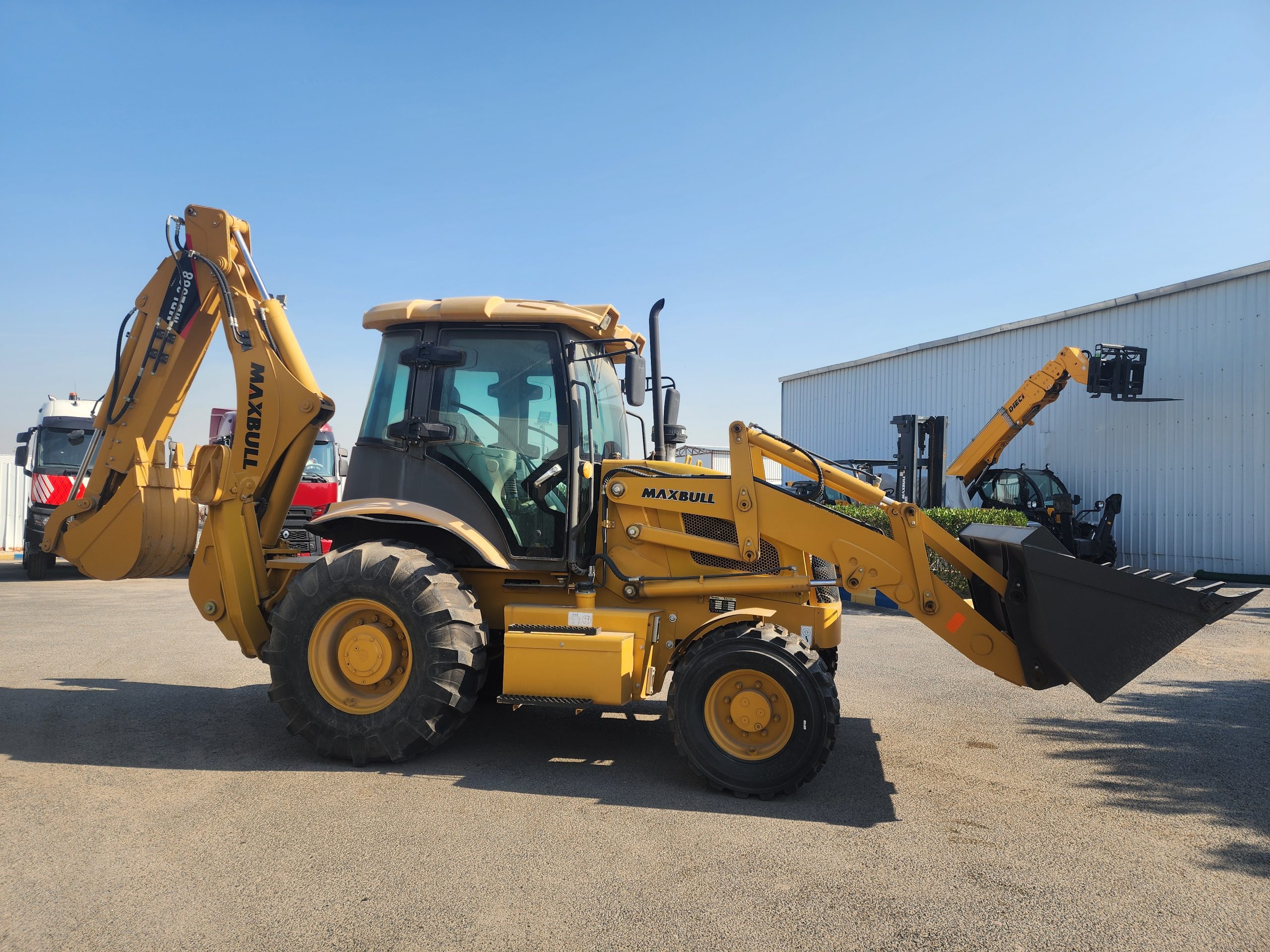

BACKHOS LOADER ML388

Category: Construction Equipment SKU: WL ML968-1 Brand: Maxbull

The use of high-reliability hydraulic torque converter and Gearbox to provide super power, aggravated the smooth and high reliability of the dedicated bridge walking;
Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %;
Mining, loading function all lead control, light and flexible, high operating efficiency.
Humanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving;

Description

Rated power/speed	kW/rpm	75/2400
Operating weight	kg	8200
LengthWidthHeight	mm	623023653752
Wheel base	mm	2250
Loading bucket capacity	m³	1.2
Rated loading	kg	2500
Dumping height	mm	2650
Breakout force	kN	38
Max. Tractive force	kN	39
Backhoe dumping height	mm	3878
Backhoe capacity	m³	0.3
Max. digging depth	mm	4085
Bucket slewing angle	°	190
Backhoe bucket digging force	kN	46.5
