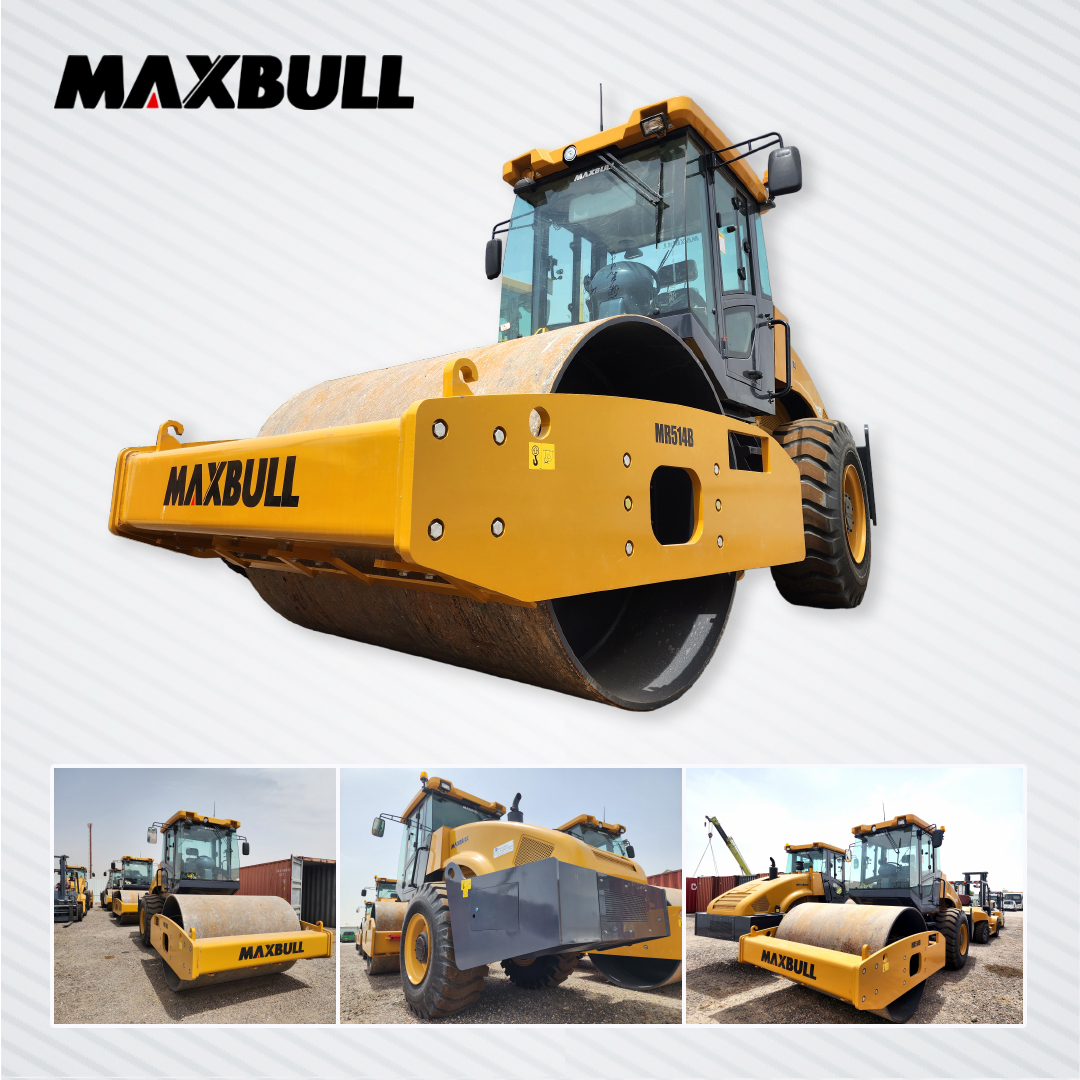

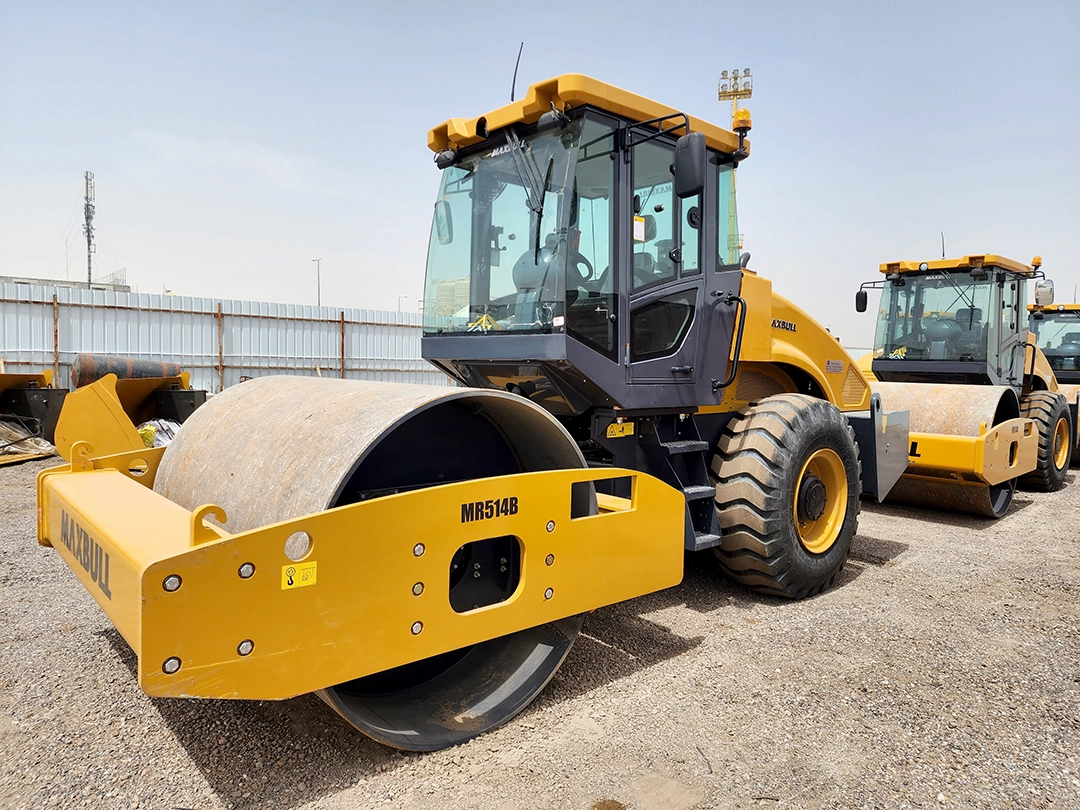

ROLLER COMPACTOR MR514B

Category: SKU: MR212B Brand:
  • Front wheel hydraulic vibration, hydraulic steering, rear wheel mechanical drive, equipped with 3 gears forward and backward non clutch power shift gearbox, easy to operate, strong climbing ability and fast transition speed.
  • Special vibrating wheel technology, large centrifugal force, high compactness and high working efficiency.
  • Strengthen special rear axle. The brake system adopts the Air-over-oil caliper disc brake, which has good braking effect and is safe and reliable.
  • Articulated frame, light steering, small turning radius, flexible maneuver.
  • The rear hood can be turned freely at large angle, Engine inverted, the humanized layout, and the maintenance is within reach
Loading...

Description

Operating mass kg 12000
Static linear load N/cm 280
Vibration frequency Hz 30
Vibration amplitude mm 1.6/0.8
Centrifugal force kN 260/160
Travel speed Km/h 2/4/10.5
Gradeability % 30
Steering angle ° 35
Ground clearance mm 360
Turing radius mm 7000
Vertical oascillation ° 8
Tire size 17.5-25
Length*Width*Height mm 5650*2280*3050
Drum width/Diameter mm 2100/1400
Wheel base mm 3060
