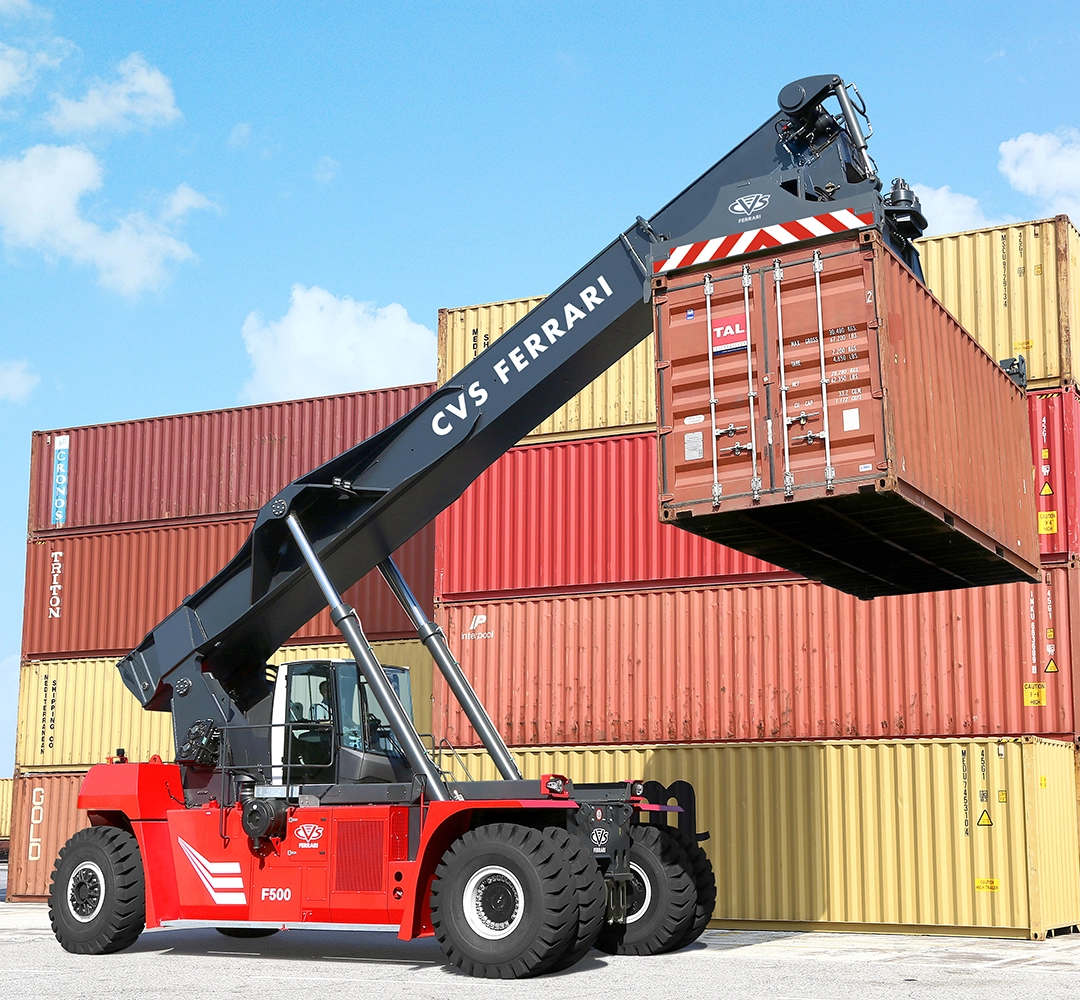

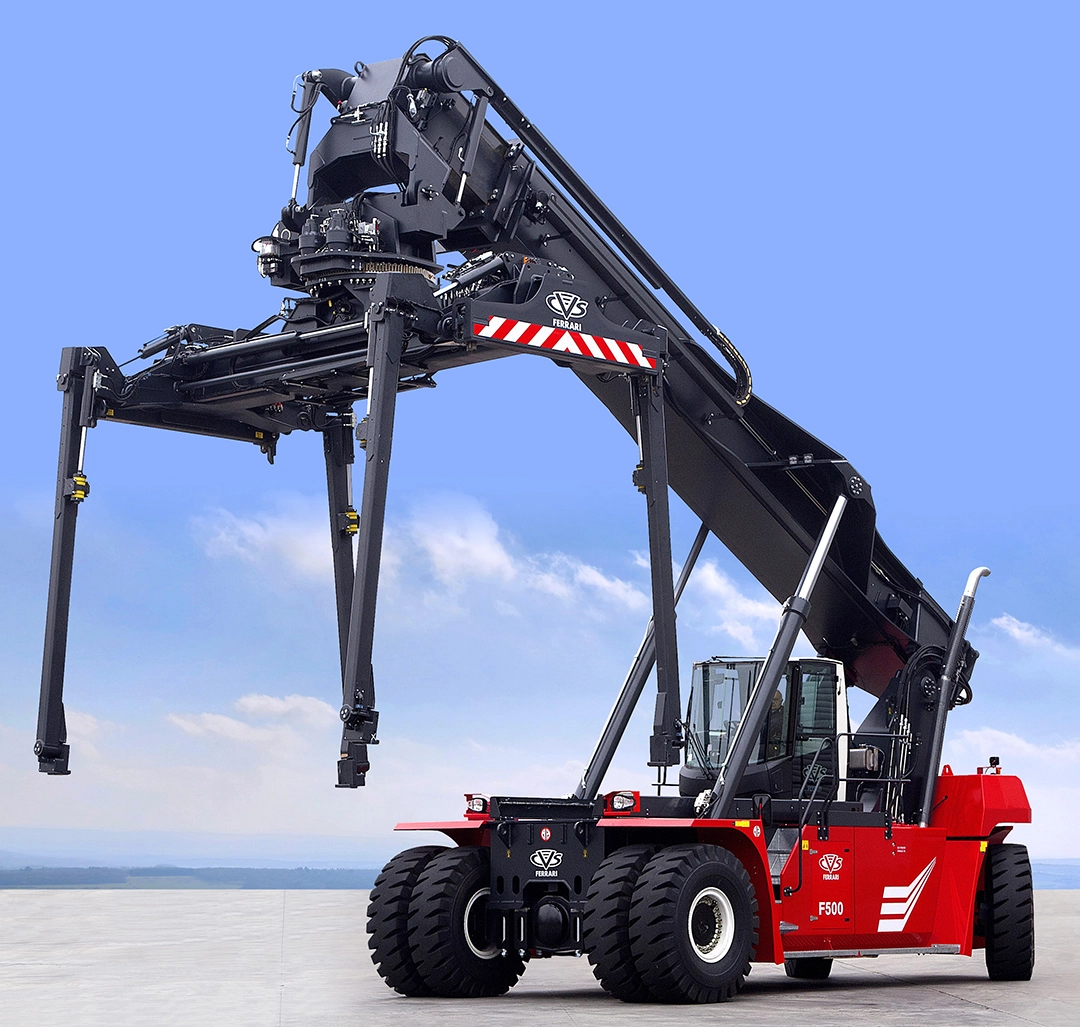

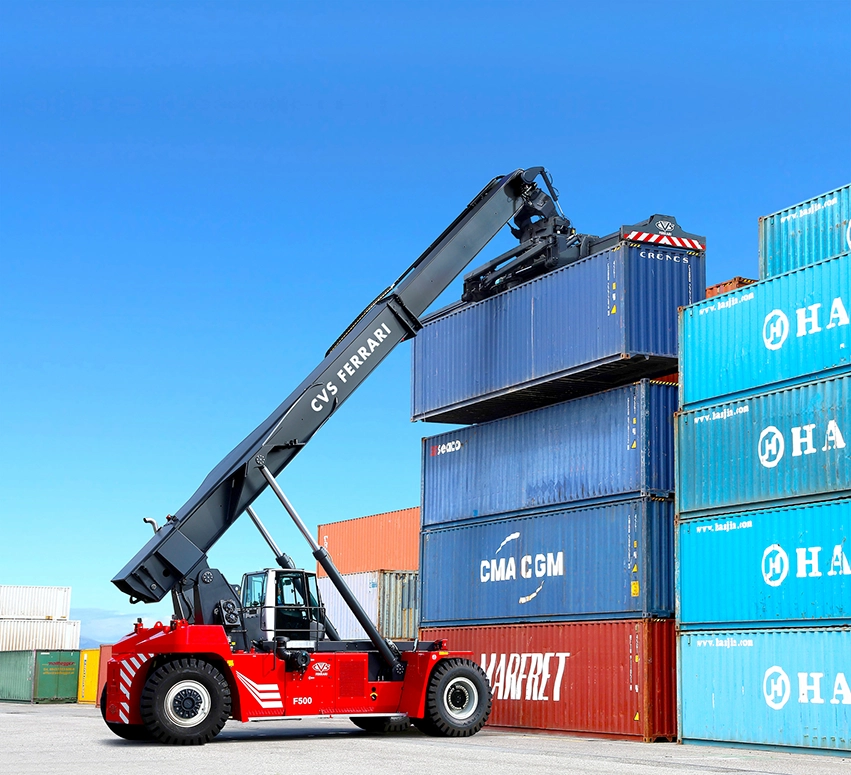

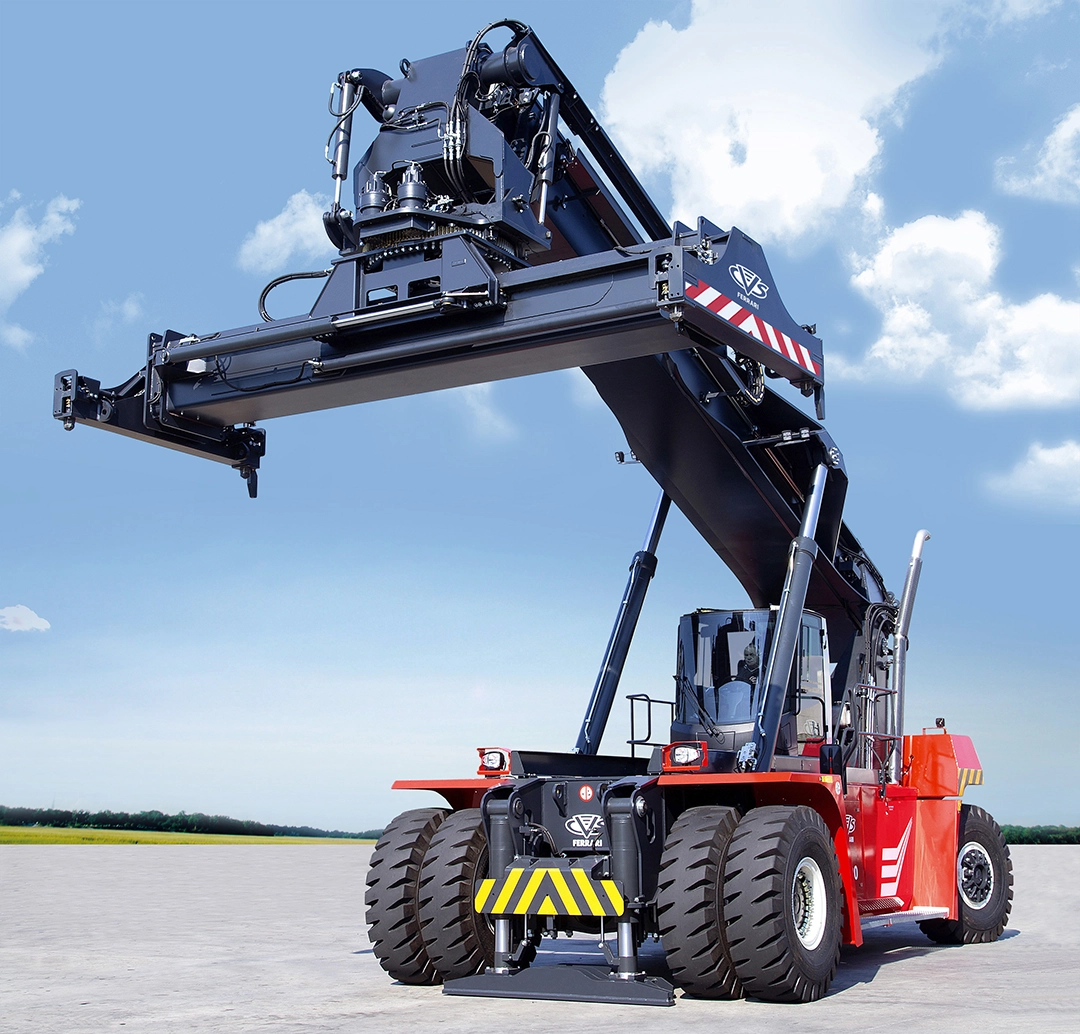

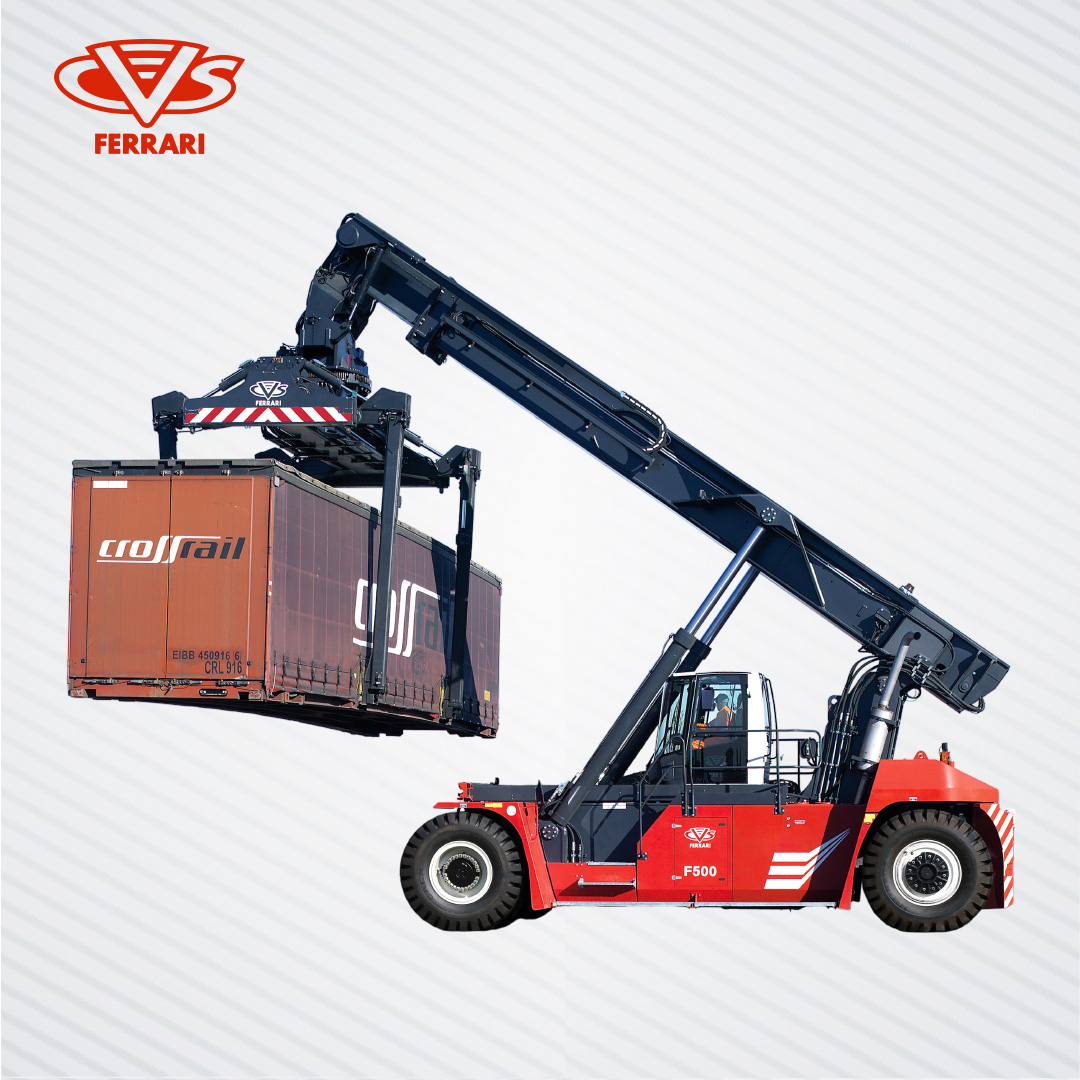

Reach Stackers
SUPER HEAVY DUTY FORK LIFT TRUCKS
Description
| Model |
|
FH52 |
| Attachment type |
|
Forks |
| Load capacity on tires |
kg |
52.000 |
| Load centre distance (+/- out/in rach) |
mm |
1.200 |
| Load centre to centre of front axle |
mm |
2.730 |
| Standard lifting height on forks (option) |
mm |
4.000 |
| Max available lift height on forks (option) |
mm |
8.000 |
| Wheelbase |
mm |
6.250 |
| Service weight (unladen) |
kg |
63.500 |
| EU Stage 3a Engine make&model (Rated Power) |
(kW) |
CUMMINS X12 (250) |
| EU Stage V Engine make&model (Rated Power) |
(kW) |
CUMMINS X12 (250) |
| Transmission make&model |
|
DANA TE30 / 5-3 |
| Service Brakes |
|
Multiple wet disk brakes |
