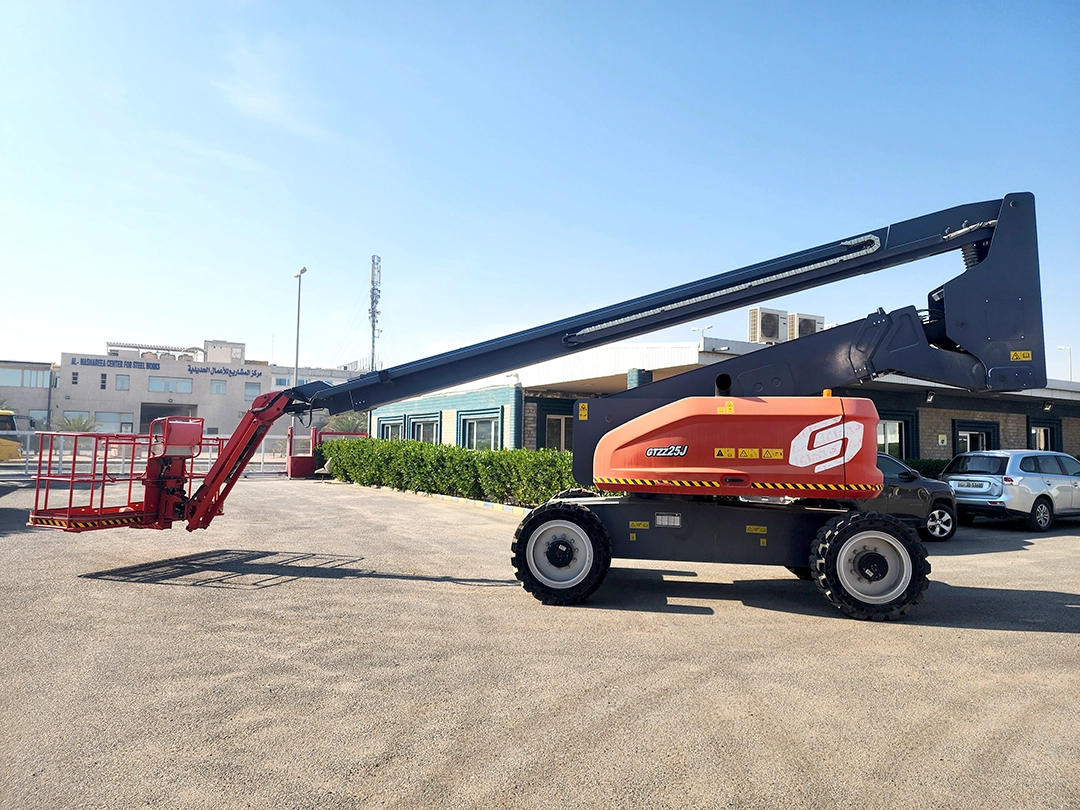

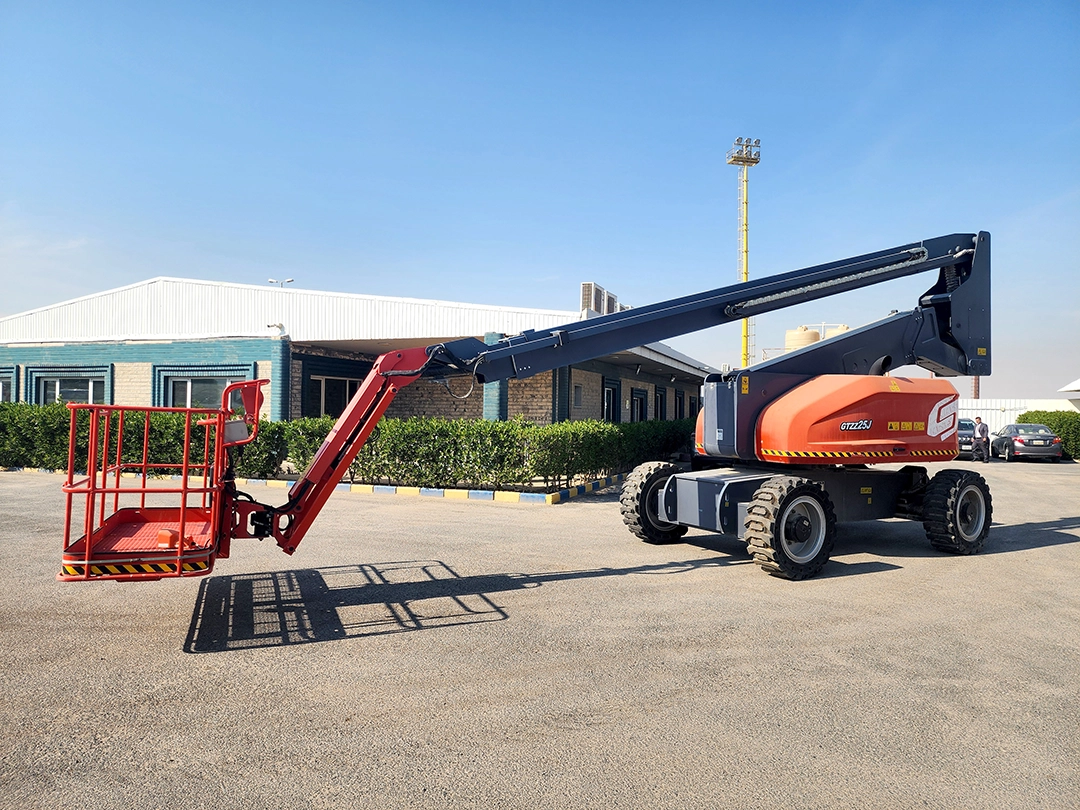

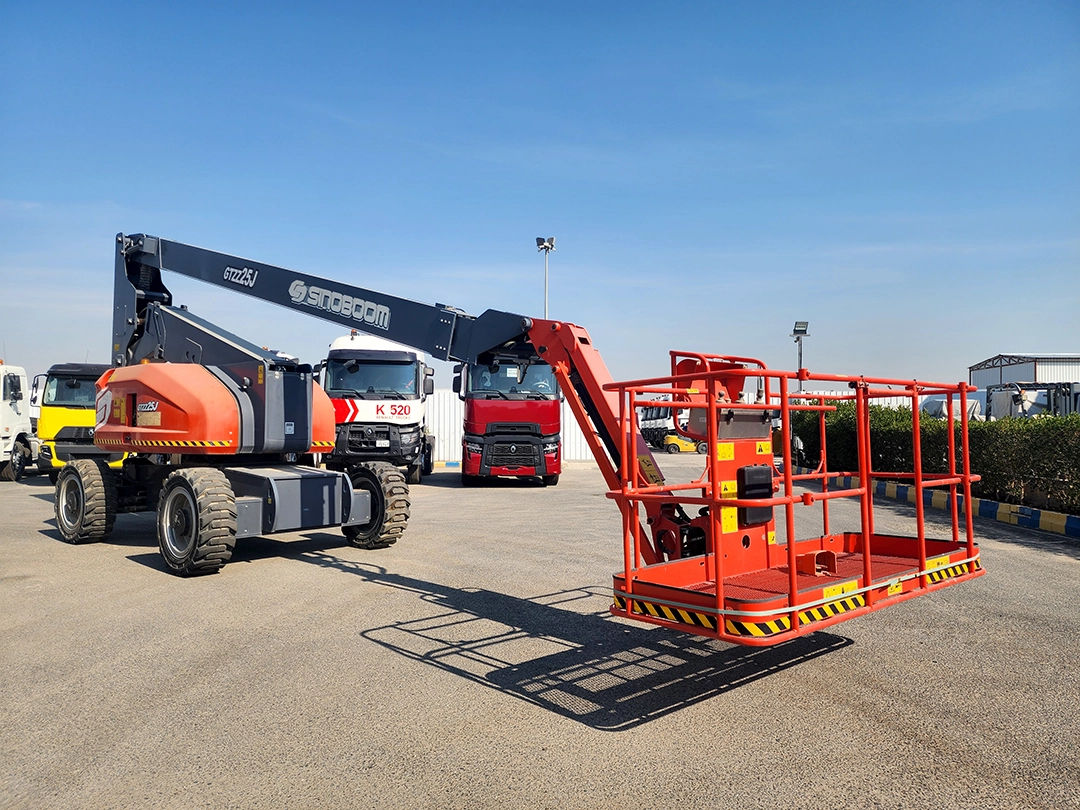

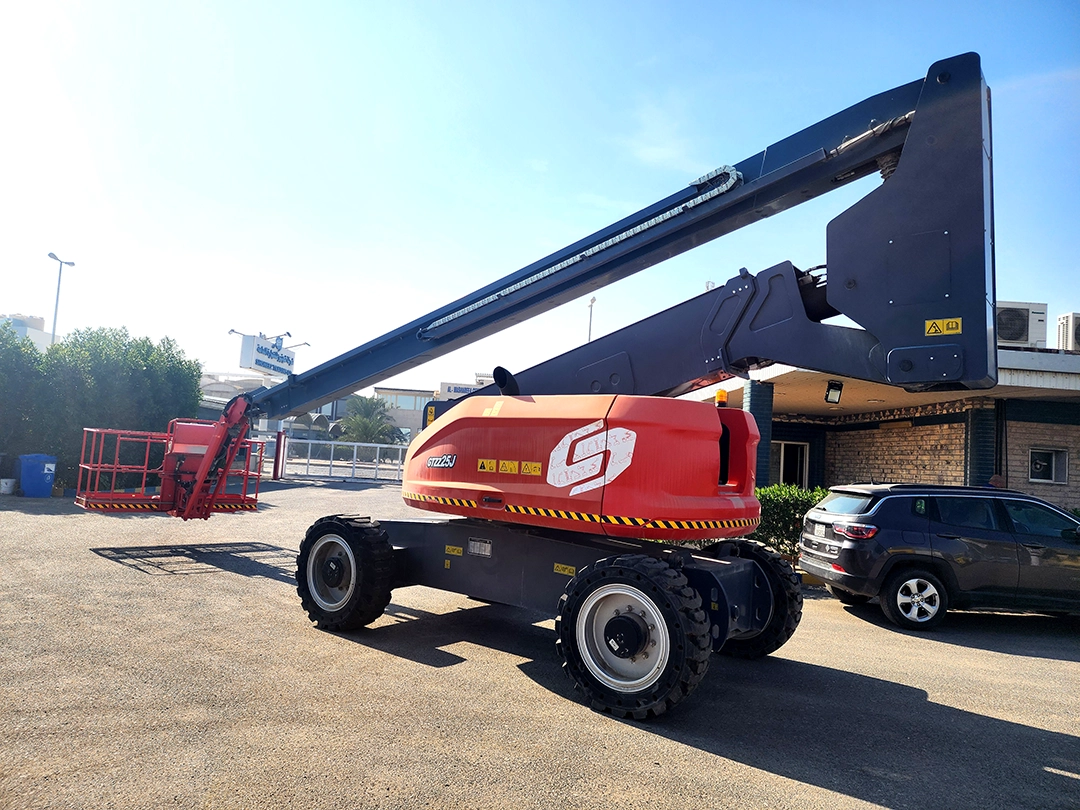

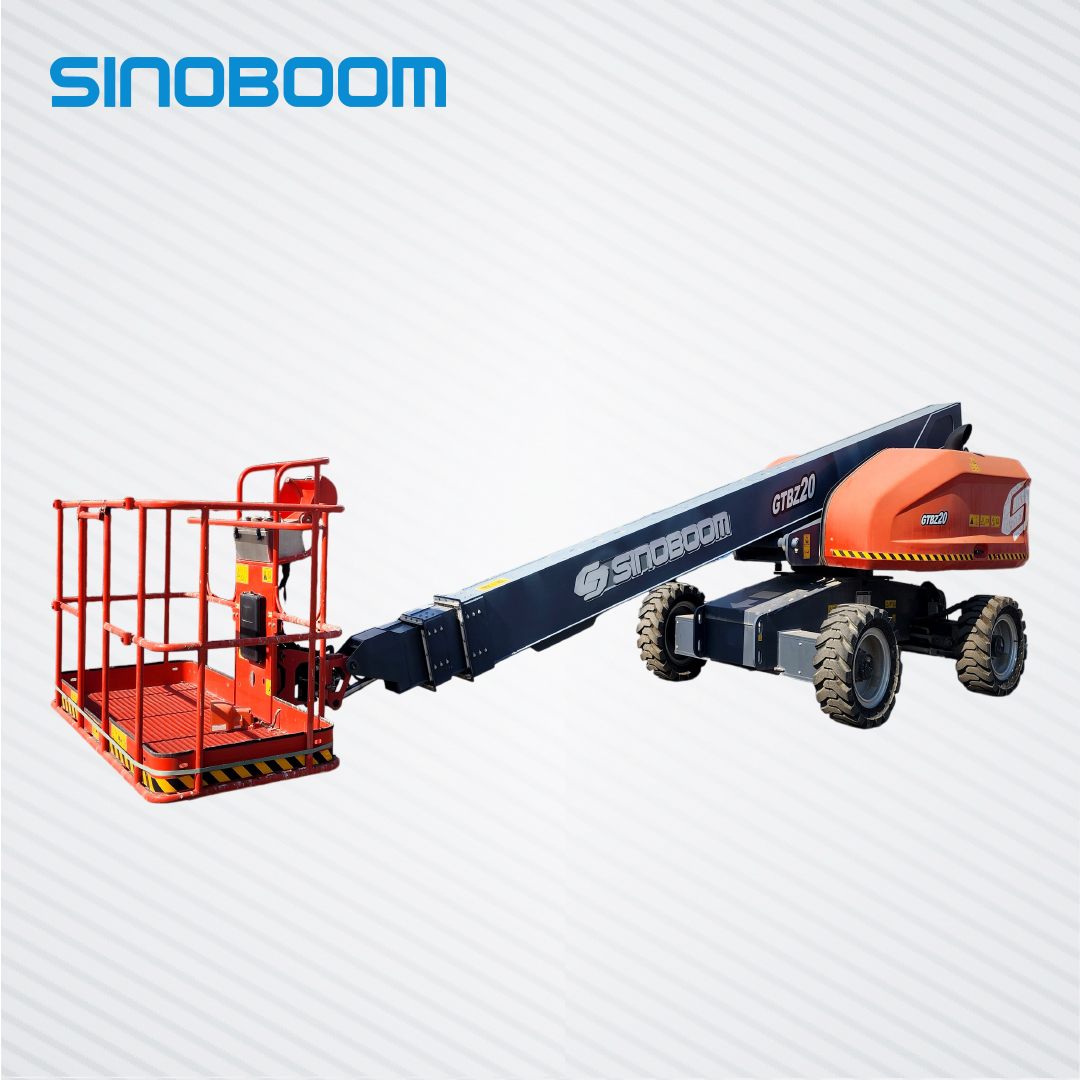

Boom Lift GTZZ 25

Categories: , SKU: ARTICULATED-ELECTRIC-1-1 Brand:

Sinoboom’s Articulating Boom Lifts include diesel, hybrid and electric driven models,

with the primary feature being the highly flexible and convenient, multi-stage folding boom.

Their articulation and rotation in particular allows this type of work platform to out-maneuver various

obstacles and work at several points without the need to reposition the base…

Loading...

Description

Platform Capacity (Unrestricted/2 Persons) 230kg (507lbs)

Turntable Rotation 360°/Continuous

Platform Rotation 160°

Drive Speed-Stowed 0~4.4 km/h (0~2.7 mph)

Drive Speed-Raised 0~1.1 km/h (0~0.7 mph)

Gradeability 30% (2WD)/45% (4WD)

Turning Radius-Inside 3.0m (9’10”)

Turning Radius-Outside 6.33m (20’9″)

Turntable Tailswing 1m (3’3″)

Tilt Rating 5°

Drive×Steer 4WD × 2WS

Tyres Spec/Type 385/65-22.5 (Foam-filled)
