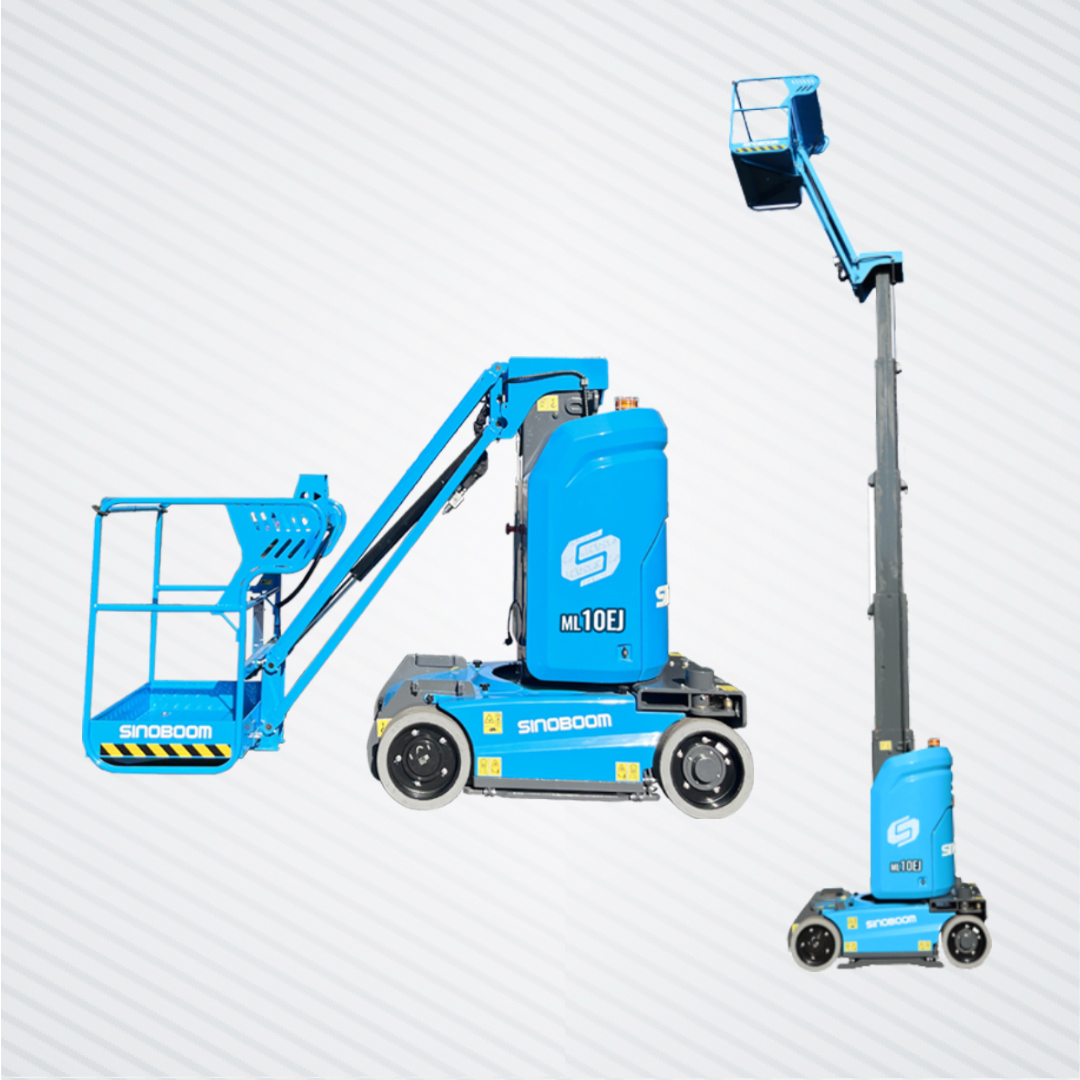

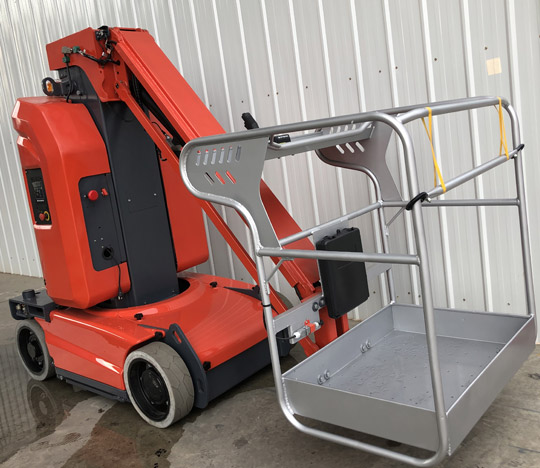

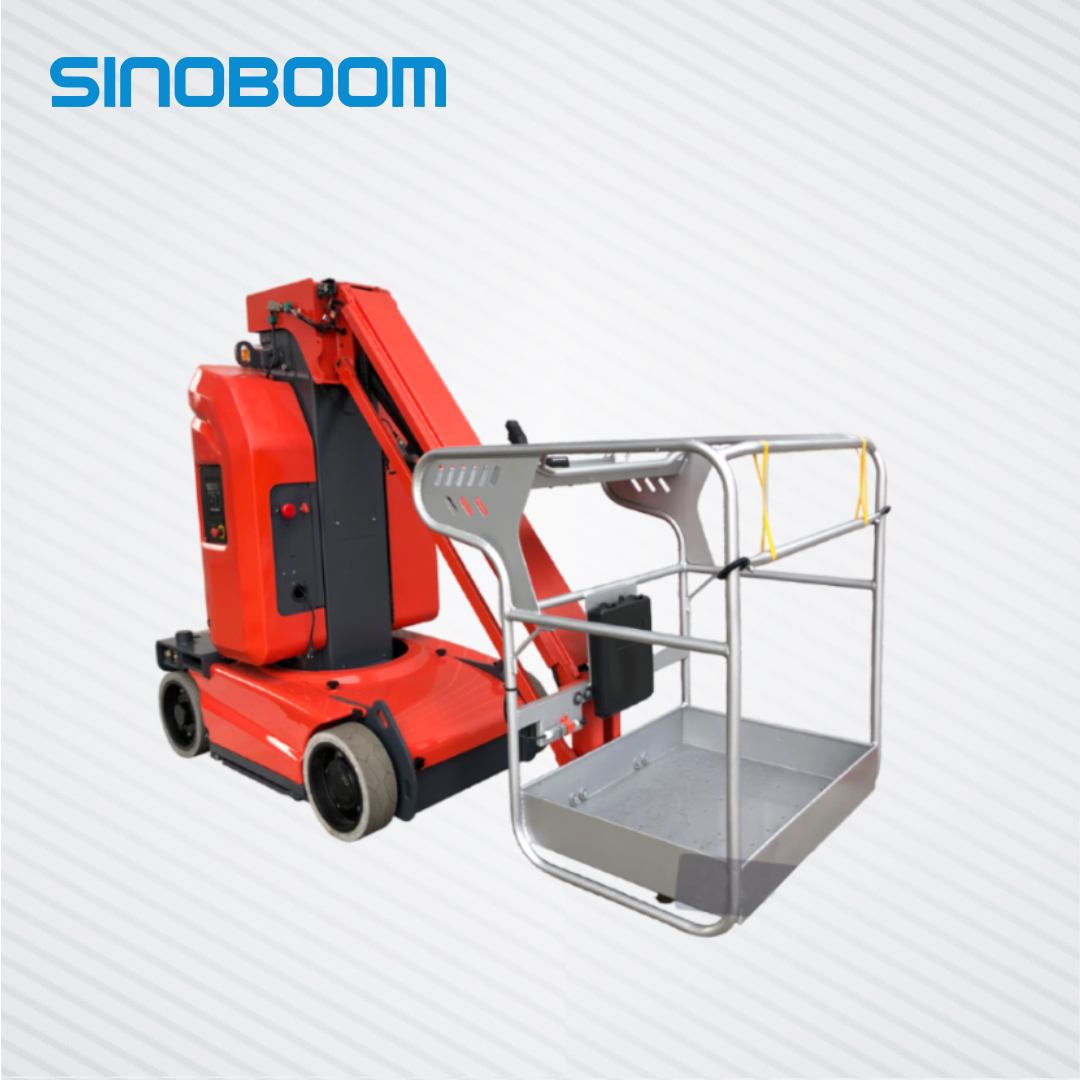

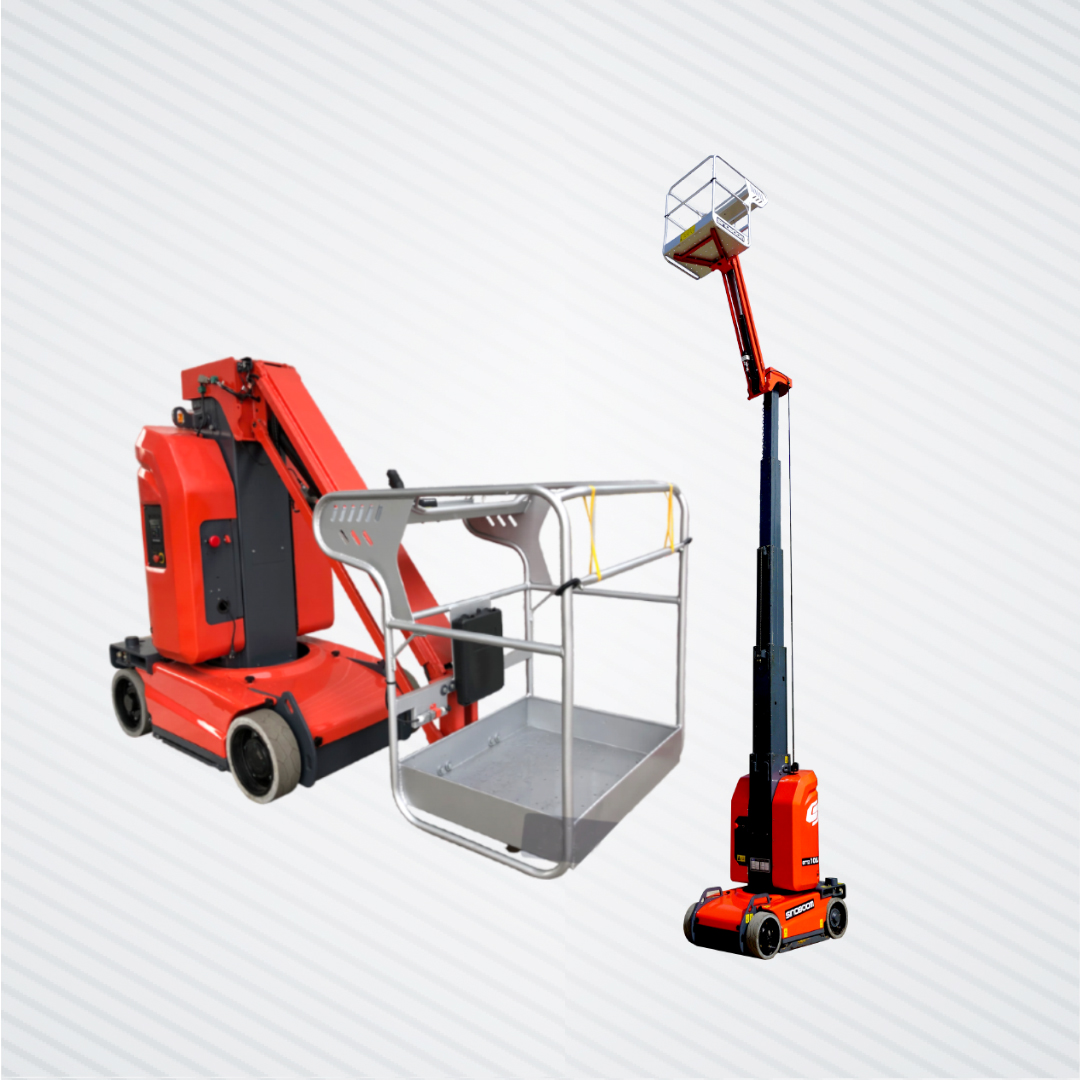

Vertical Mast Lift GTTZ 10E

Category: Cleaning Equipment SKU: VERTICAL-LIFT Brand: Sinoboom

Easily passes through most standard doors
Easily passes through most standard doors, zero tail sweep and zero tailswing
Unique disassembly system with integrated boom
Unique disassembly system with integrated boom
Unique movable pothole protection system
Unique movable pothole protection system

Description

Description

Vertical Mast Lift GTTZ 10E

Description

Platform Allowable Occupants (Indoor/ Outdoor) 2 persons/1 person

Platform Capacity 200kg (440lbs)

Drive Speed-Stowed 4km/h (2.5mph)

Drive Speed-Raised 0.6km/h (0.37mph)

Elevation Time 32~36s (unloaded)

Descent Time 32~37s (unloaded)

Gradeability 25%

Turning Radius (Inside/Outside) 0/1.55m (0/5’1″)

Tilt Rating (Front to Back/Side to Side) 3°/3°

Tyre Spec/Type 406×127mm (16×5″) solid

Vertical Mast Lift GTTZ 10E

Description

Platform Allowable Occupants (Indoor/ Outdoor) 2 persons/1 person

Platform Capacity 200kg (440lbs)

Drive Speed-Stowed 4km/h (2.5mph)

Drive Speed-Raised 0.6km/h (0.37mph)

Elevation Time 32~36s (unloaded)

Descent Time 32~37s (unloaded)

Gradeability 25%

Turning Radius (Inside/Outside) 0/1.55m (0/5’1″)

Tilt Rating (Front to Back/Side to Side) 3°/3°

Tyre Spec/Type 406×127mm (16×5″) solid
